| Display | Panel Size | 43″/49″/55″/65″/75″ | ||||||||||||
| Resolution | 1920×1080 FHD/4K | |||||||||||||
| LCD Manufacturer | BOE/LG/AUO( Industrial grade panel, 105℃ TNI heat resistant panel, wide working temperature-30~ +80℃) | |||||||||||||
| Viewing angle | 89/89/89/89(L/R/U/D) | |||||||||||||
| Contrast ratio | 1200:1 | |||||||||||||
| Brightness | 2500nits as standard (3500nits/4500nits can be customized) | |||||||||||||
| Aspect Ratio | 16:9 | |||||||||||||
| Active Area | 1210(H) × 680(V) mm | |||||||||||||
| Operational Life Cycle-MTBF(hours) | 50K hours | |||||||||||||
| Grey to Grey Response Time (ms) | 6ms | |||||||||||||
| Power | Input Voltage | AC110 ~ 240 ± 10%, 50 / 60 HZ | ||||||||||||
| Leakage Protection | 30mA/0.1S | |||||||||||||
| Built-in Power Socket | 1 pcs (EU/US/UK/AU/Swiss Standard optional, more sockets are optional) | |||||||||||||
| Timer Switch | 1 pcs | |||||||||||||
| Max Power Consumption (w) | TBD | |||||||||||||
| Enclosure Material | Enclosure Material | Fully Aluminum Housing ( Anti-corrosion & rust-proof with 15 years lifetime) | ||||||||||||
| Glass Type | 6mm tempered glass as standard | |||||||||||||
| 6mm Tempered glass as standard with Double side AR surface treatment with high transparency, reducing reflection/ UV/ IR (optional) | ||||||||||||||
| 6mm tempered glass with AG coating, anti-glare surface treatment reduce reflection (optional) | ||||||||||||||
| Double Laminated AR Glass 3mm+3mm is optional (optional) | ||||||||||||||
| Glass Characteristics | Transmissivity > 93%, Reflectivity < 2% | |||||||||||||
| Optical Bonding (Optional) | Tempered Glass & LCD Display&Touch optical bonding technology is optional | |||||||||||||
| Protection Grade | IP65&IK10 | |||||||||||||
| Thickness | 120mm/150mm/185mm | |||||||||||||
| Environment | Operating Environment | Fully Outdoor for All Weathers | ||||||||||||
| Operating Temp. | -10℃ ～+60℃ | |||||||||||||
| Operating Humidity | 5% ~ 98% | |||||||||||||
| Operating Altitude (m) | ≤ 2000 | |||||||||||||
| Built-in HDMI input Monitor Video Board | HDMI input | 1 pcs, Support 1920*1080, 4K resolution is optional | ||||||||||||
| Signal Output | VbyOne or LVDS | |||||||||||||
| Android Operating System(Option 1) | CPU | RK3399, Dual-core Cortex-A72 + Quad core Cortex-A53, MAX 1.8GHz | ||||||||||||
| GPU | ARM Mali-T864 | |||||||||||||
| RAM | 4GB | |||||||||||||
| Internal memory | 64GB EMMC | |||||||||||||
| Operation system | Android 7.1/ Android 8.1/ Android 9/ Android 10 | |||||||||||||
| Network | WiFi & Ethernet Port, 3G/4G is optional | |||||||||||||
| I/O | HDMI input *1pcs, , ethernet port*2pcs, USB*2pcs, Sim Card Slot*1 etc. | |||||||||||||
| Android Operating System(Option 2) | CPU | RK3288, Quad-core Cortex-A17, MAX 1.8GHz | ||||||||||||
| GPU | ARM Mali-T764 | |||||||||||||
| RAM | 2GB/4GB | |||||||||||||
| Internal memory | 16GB/32GB/64 EMMC | |||||||||||||
| Operation system | Android 7.1/ Android 8.1/ Android 9/ Android 10 | |||||||||||||
| Network | WiFi & Ethernet Port, 3G/4G is optional | |||||||||||||
| I/O | HDMI output*1pcs, USB*2pcs, ethernet port*1pcs, Sim Card Slot*1 etc. | |||||||||||||
| Free Remote Content Management Software（For Android only) | Editing Playlist, timing, playback | |||||||||||||
| Edit Multi Zones Play different contents | ||||||||||||||
| One Video/image splicing to multiple screens by software, no need for extra controller/matrix/HDMI splitter | ||||||||||||||
| Support live stream, URL, Youtube Video, PDF, WORD, TXT, etc | ||||||||||||||
| Remote Management by mobile, PC thru wifi/lan network | ||||||||||||||
| Support 4K high-resolution video, Max uploading video 2GB, Max uploading image 20MB | ||||||||||||||
| Support Simple USB sticker plug-play looping images/videos | ||||||||||||||
| Cloud base software is supported | ||||||||||||||
| Free of charge | ||||||||||||||
| Windows System (Optional) | CPU | Intel i3, i5, i7( dual core/quad core, 3th to 11th Generation is optional） | ||||||||||||
| RAM | 4GB/8GB/16GB | |||||||||||||
| Internal memory | 128GB SSD/256GB SSD | |||||||||||||
| Operation system | Windows 10 | |||||||||||||
| Network | WiFi & Ethernet Port, 3G/4G is optional | |||||||||||||
| I/O | HDMI output*1pcs, USB*4pcs, ethernet port*1pcs, Sim Card Slot*1 etc. | |||||||||||||
| PCAP Touch Screen(Optional) | Touch Type | PCAP Touch | ||||||||||||
| Touch Max Resolution | 4980*4980 | |||||||||||||
| Transparency | > 90%, up to 100% | |||||||||||||
| Scanning Speed | > 50s scans/s | |||||||||||||
| Responsive Time | <12ms | |||||||||||||
| Touch Precision | 0.625mm | |||||||||||||
| Minimum Touch | 5mm | |||||||||||||
| Communication | USB port | |||||||||||||
| Media & Connectivity& Other | Optional functions | Heater | ||||||||||||
| Camera/webcam | ||||||||||||||
| Customized external Sensor | ||||||||||||||
| AC air conditioner | ||||||||||||||
| Microphone | ||||||||||||||
| Emergency button | ||||||||||||||
Outdoor Digital Signage
Outdoor Wall Mount Display

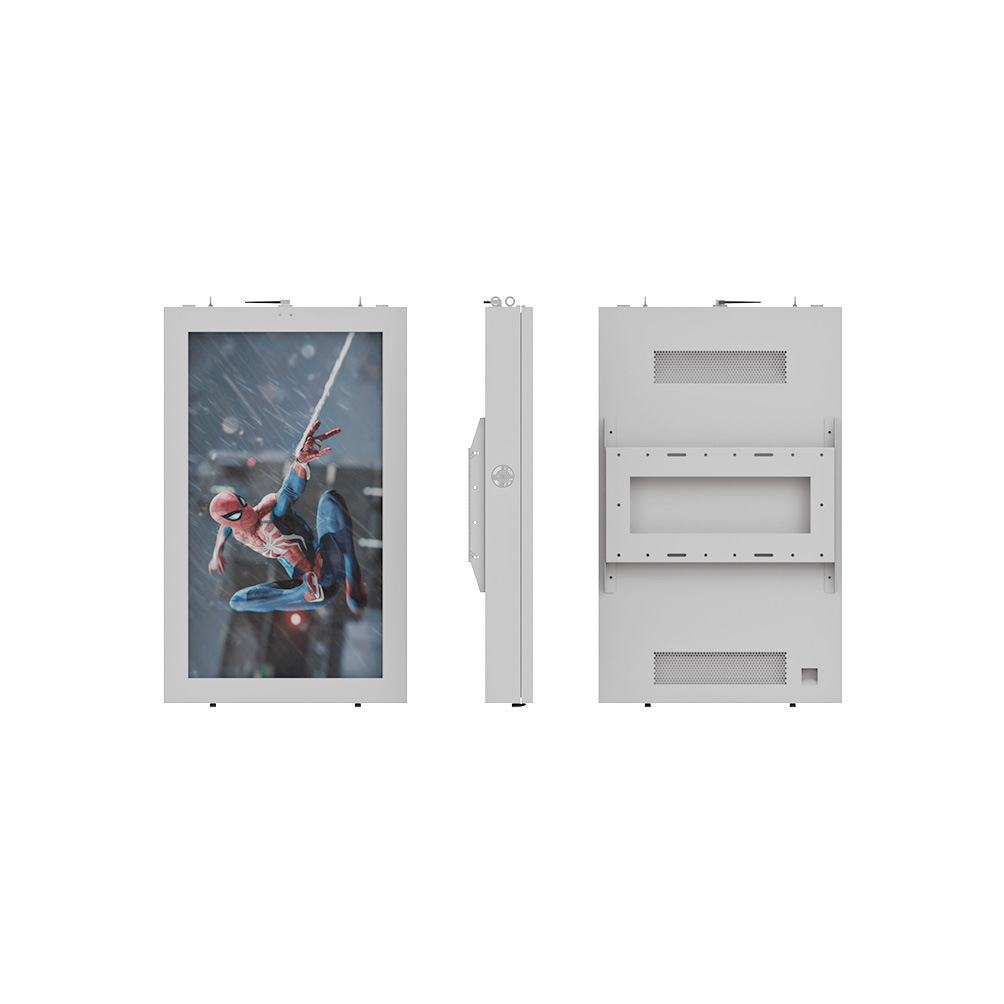

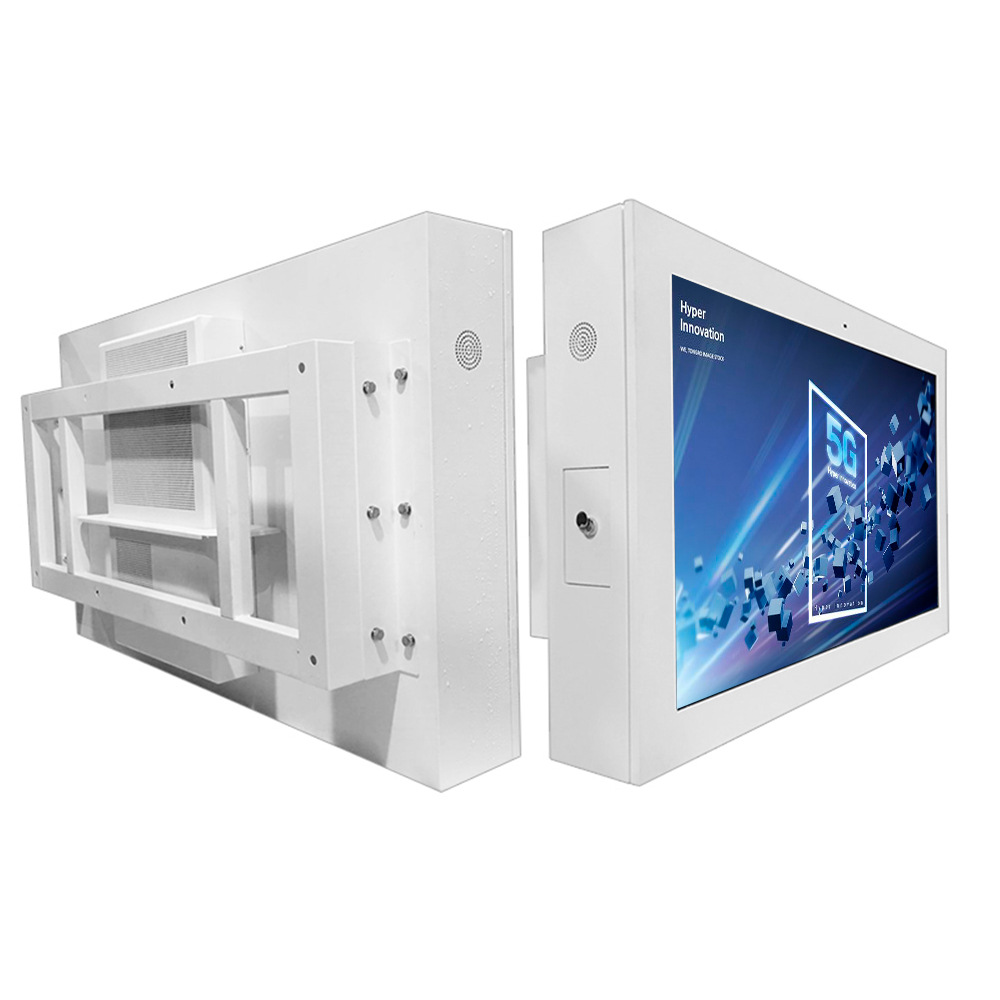

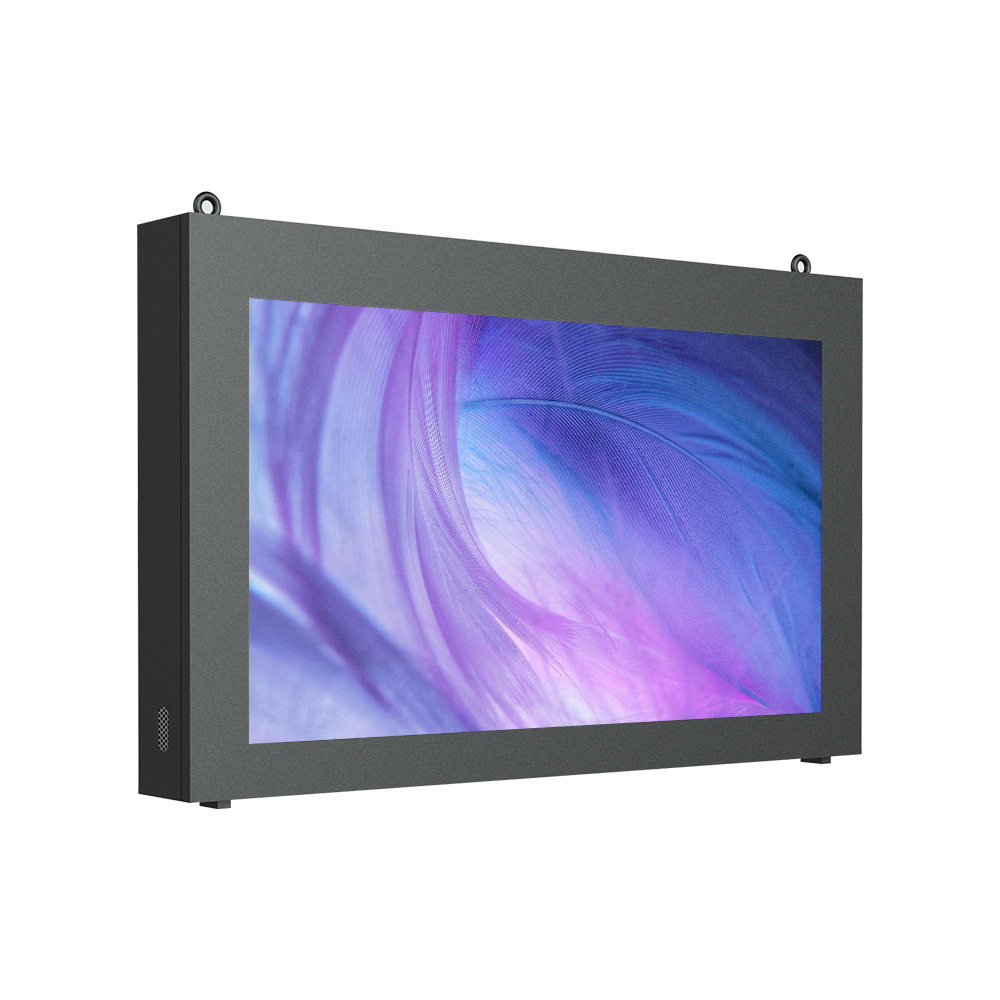

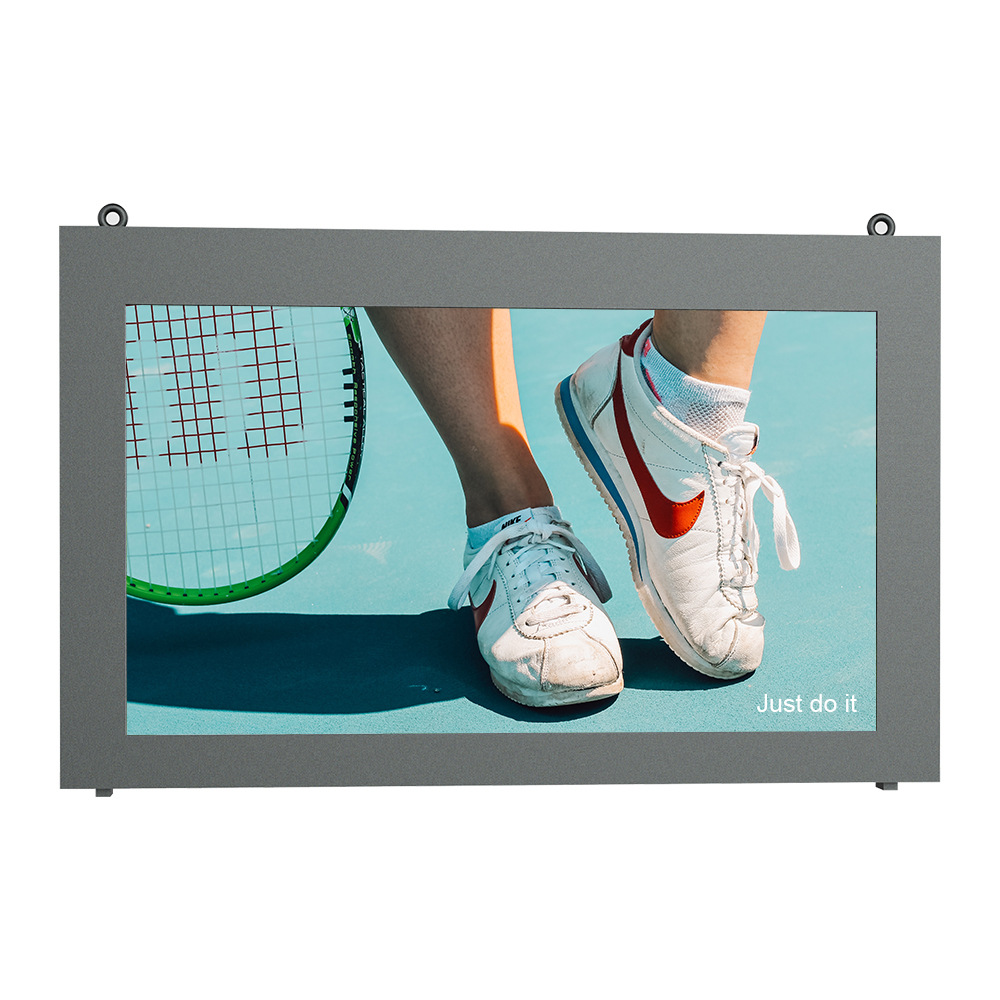

- Model: IP65 Outdoor Single-Side Digital Signage Kiosk
- High Brightness: 2500-5000 nits, ensuring clear readability in direct sunlight without blacking
- Weatherproof Technology: Fully-enclosed design for reliable 24/7 outdoor use
- Wide Operating Temperature: -10℃ to +60℃, with IP65 rating for resistance to direct sunlight, rain, snow, and dust
- Performance Guarantee: 50,000 hours of operational life
- Durable Design: Aluminum framework suitable for use in coastal cities
