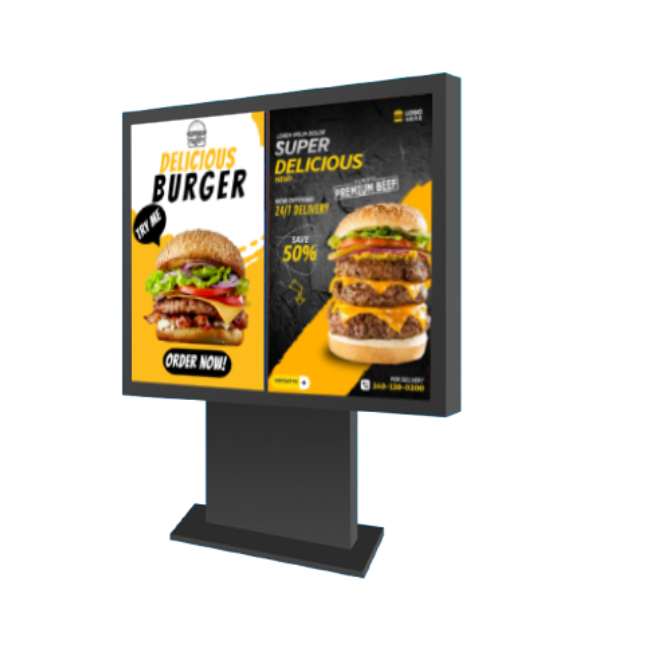

65” Side-by-Side Dual Screen Drive-Thru Menu

  • Ultra High Brightness: Available in 2500 or 3500 nits for true sunlight readability with no screen blackouts.
  • All-Weather Durability: Fully enclosed design built for 24/7 outdoor use, no matter the conditions.
  • Extreme Temperature Range: Operates smoothly in temperatures from -30°C to +50°C. Built to withstand direct sunlight, heavy rain, snow, and dust.
  • Long-Lasting Performance: Rated for 50,000 hours of continuous operation.
  • Rugged Build: Aluminum housing ensures up to 15 years of rust-free performance.

65” Side-by-Side Dual Screen Drive-Thru Menu

  • Long-Lasting Brightness: Featuring a high-efficiency LED backlight panel, developed by the Sonysview R&D team, this display is built for 24/7 operation. It offers exceptional visibility from every angle, even in direct sunlight, ensuring it catches the attention of every passing customer.
  • Rugged Outdoor Protection: Designed for extreme weather conditions, the Sonysview Drive-Thru Digital Menu is protected by a durable metal casing and tempered glass. With an IP65 rating, it stands up to rain, dust, and everything in between, keeping your content visible no matter the forecast.
  • Advanced Temperature & Humidity Control: Equipped with embedded heaters, fans, and sensors, this system maintains optimal performance by regulating internal temperature and humidity, regardless of harsh outdoor environments.
  • Adaptive Brightness Sensor: The built-in ambient light sensor automatically adjusts the display brightness based on surrounding light conditions. It switches to night mode in low light and max brightness under direct sunlight, ensuring perfect visibility at any time of day.
  • Durable, Anti-Corrosion Housing: The aluminum housing is both rust-proof and corrosion-resistant, making it ideal for long-term use, especially in coastal cities where saltwater exposure is a concern.
  • Industrial-Grade LCD Panel: Built for tough outdoor environments, the industrial-grade LCD panel is engineered to handle extreme sunlight and high operating temperatures. With a wide operating range of -30°C to +80°C and brightness options of 2500 or 3500 nits, it ensures reliable performance in any conditions.
Model 65” Side-by-Side Dual Screen Drive-Thru Menu
Size 65″
Panel
Panel Size (inch) 65″ inch industrial grade LCD panel
LCD Manufacturer BOE/LG
Active Display Area (h x w mm) 1428 x 803
Resolution (pixel) 3840 x 2160/ 4K resolution
Aspect Ratio 16 : 9
Brightness (nits) 2500nits/3500nits
Contrast Ratio 4000 : 1
Grey to Grey Response Time (ms) 6 ms
Viewing Angle (H/V) 178°/178°
Backlight Configuration LED light
Operational Life Cycle-mtbf (hours) 50000
Power
Input Voltage AC220/110 V ± 10%, 50 / 60 HZ
Leakage Protection 30mA/0.1S
Input Voltage AC220 / 110V ± 10%, 50 / 60 HZ
Max Power Consumption (w) 880
Enclosure Material
IP Rating IP65
Enclosure Material  Aluminum Frame work+Aluminum plate+ zinc powder coating +
fine grain powder triple coating
Glass Type Tempered glass with AR coating
Glass Characteristics Transmissivity > 93%, Reflectivity < 2%
Unit Dimension (w x h x d mm) 1×2 65 INCH: 1776x2490x185 / 1×3 65 INCH: 2592x2490x185mm
Bezel Width (mm) 120
Weight (kg) 268
Environment
Operating Environment Outdoor
Operating Temp. -30 +50
Operating Humidity 5% ~ 98%
Operating Altitude (m) ≤ 2000
Media & Connectivity
Option Windows / Android / TV Board
Wifi
4G /3G
Touch Screen
